Radio Removal from 1999 / 2000 / 2001 Nissan Quest / Mercury Villager / Ford Windstar

horizontal rule

NOTE DISCLAIMER:  FixYourRadio.com, a division of  Absolute Technologies, Inc. will not claim responsibility for information posted within these web pages.  While all efforts are made to provide accurate information, the information is provided at your own risk - use it at your own risk. We are not responsible for the misuse, incorrect installation, incorrect information, or failure of any products we cover. NO WARRANTY IS MADE OR IMPLIED REGARDING ANY PRODUCTS COVERED BY FIXYOURRADIO.com or ABSOLUTE TECHNOLOGIES, INC.  NOR DOES FIXYOURRADIO.COM or ABSOLUTE TECHNOLOGIES, INC. CLAIM TO PROTECT USERS FROM INJURY OR DEATH. THE USER ASSUMES ALL RISKS.

The postings, comments, and opinions are provided at your own risk and do not necessarily represent the views or opinions of  FixYourRadio.com, a division of  Absolute Technologies, Inc. or any manufacturers or companies listed on this website.

We cannot express how important it is to read the manufacturers instructions that are included with every product you buy and use. Failure to do so could result in incorrect use or installation, which could cause serious injury or death.  Any of these instructions may void or limit warranties provided by the manufacturers.  You assume all responsibilities by purchasing any of the offered fixes.


ALL CONTENTS ON THIS SITE ARE PROTECTED BY COPYRIGHT. EXCEPT AS SPECIFICALLY PERMITTED HEREIN, NO PORTION OF THE INFORMATION ON THIS WEB SITE MAY BE REPRODUCED IN ANY FORM, OR BY ANY MEANS, WITHOUT PRIOR WRITTEN PERMISSION FROM ABSOLUTE TECHNOLOGIES, INC. VISITORS OR USERS ARE NOT PERMITTED TO MODIFY, DISTRIBUTE, PUBLISH, TRANSMIT OR CREATE DERIVATIVE WORKS OF ANY MATERIAL FOUND ON THIS WEB SITE FOR ANY PUBLIC OR COMMERCIAL PURPOSE.

horizontal rule

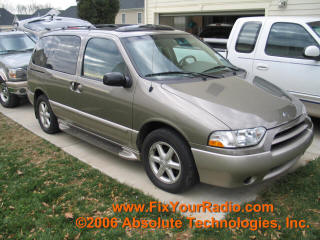

Figure 1 - '02 Nissan Quest

If you have one of these types of Nissan Quest (or Mercury Villager or Ford Windstar), then you may likely have one of the radios shown in Figure 2...and even more likely to be experiencing the blank display problem (and possible the CD eject problems).  The following are the first steps to getting your radio working again.  Once you have the radio out of the dash, then you may want to consider the Save My Sanity Swap program or the Do-It-Yourself repair...either way, once you have the radio out of the dash, you've practically done the hardest part of getting your radio fixed.


Figure 2 - '02 Nissan Quest
(same for
Mercury Villager or Ford Windstar)

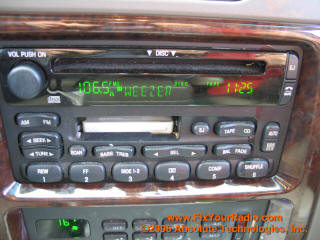

Figure 2 shows the neat feature of this radio in which the RDS feature is showing the artist (Weezer) of the song playing...you too, can see this, once you get  your display fixed.

Getting your Radio out of a Nissan Quest (or Mercury Villager or Ford Windstar)

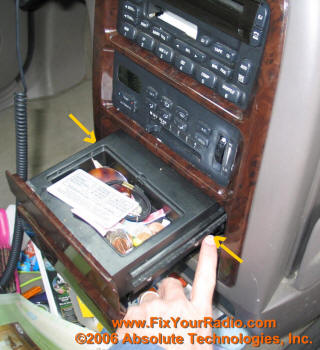

The first step to the radio repair is to remove the cup holder / ashtray from the dash.  This is done by pushing in the two buttons (one on each side) as indicated in Figure 3 below.


Figure 3 - Removing Drink Tray / Ash Tray

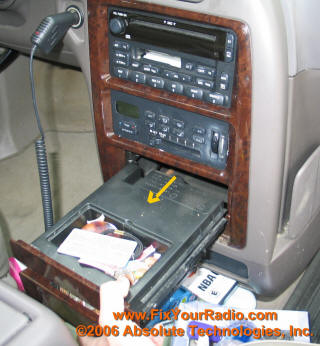

Figure 4 - Tray Removed

Use your index finger to push in the buttons in on each side of the ashtray and then pull the tray out...it should slide all the way out of the panel.

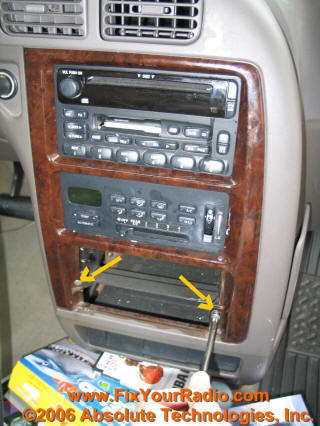

Figure 5 - Remove Two Screws

Using a phillips screwdriver, remove the two screws, one on each side, holding the front panel in place.

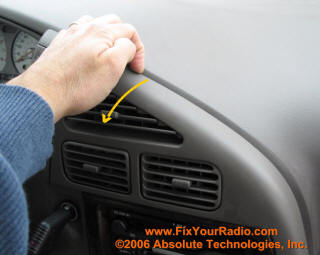

Figure 6 -
Pry Panel Loose

With the screws removed, position your fingers in the seam above the A/C vents where the panel connects to the dash.  With a little luck, you should be able to pull this portion of the panel from the dash.  It takes an action that pivots the panel at the bottom (below the ashtray) where it connects to the bottom.  So, pull from the top, while pivots below where it connects.

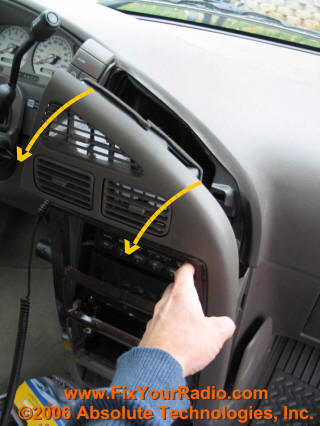

Figure 7 - Panel Pivot

So, pull from the top, while pivoting below where it connects, as shown in Figure 7.

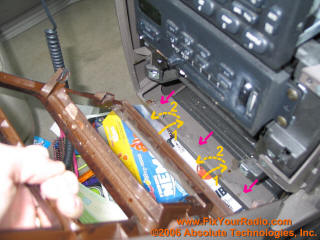

Figure 8 - Interlocking Tabs

In Figure 8, the pink arrows point to the interlocking tabs of the front dash.  There are slots in the front panel (that you are trying to remove) that hook onto the tabs.  Once you get the top loose and pulled from the dash, you should be able to push the bottom of the panel in (label step 1 in figure 8), then lift up and out (step 2 in figure 8).  Your panel should be free to set aside.

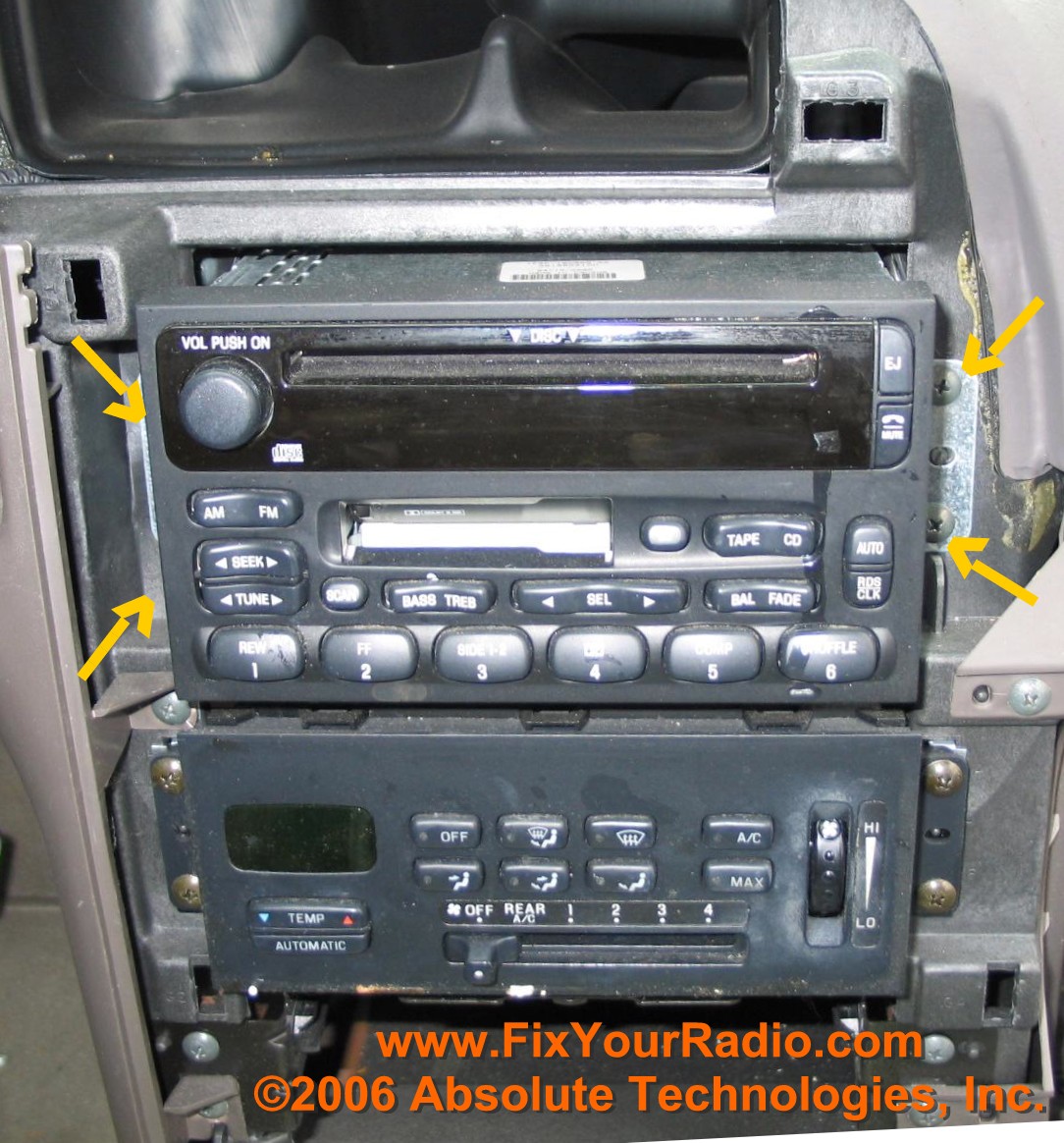

Figure 9 - Radio Screws

Remove the 4 screws shown in Figure 9 and then you should be able to slide your radio out of the dash (but it will still be connected to the wires within the dash)

.

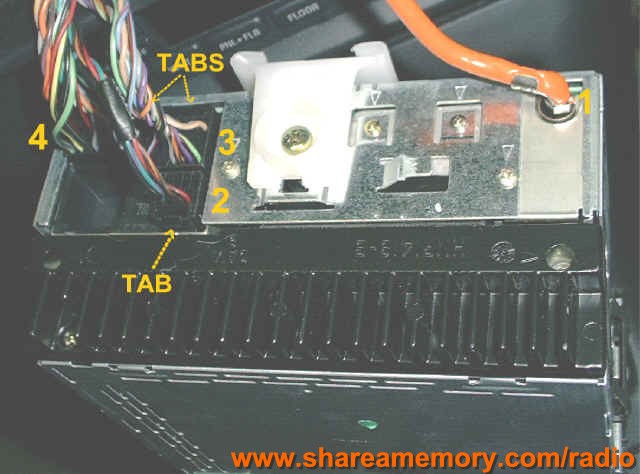

Figure 10 - Back of Radio Connectors
(this is actually a picture from an Explorer, but the layout is the same buy you won't have the white plastic piece...if you are that detailed oriented to notice that)

Figure 10 shows the three connectors and the antennae coax connection that needs to be removed.  NOTE: You may only have TWO Connectors if your vehicle doesn't have a powered subwoofer...so don't be alarmed of you only have two plus the antennae.  The order in which I remove these are numbered...first the antennae coax is disconnected, followed by the three connectors (installation is the reverse process...4, 3,2,1).  Note that the connectors have tabs on them which need to be depressed to be able to pull the connector out of the radio.

You should now have your radio out of the dash...you can move on to the Fix!

horizontal rule

DID YOU FIND THESE INSTRUCTIONS USEFUL?

If you have found these instructions useful, then please consider a donation.  It helps keep this web site up and running and supports more development of this type material.

Thanks for your kind consideration.

To make a $3 donation using PayPal, click the donate button below...

Again, thanks for your consideration.

horizontal rule

If you are just using this site for the information to remove your radio and have found this information useful, then please consider giving a contribution to the effort and the time taken from my kids to get these directions together (and to help defray the hosting fees incurred to keep this information posted).  PayPal makes it easy to contribute $3 or whatever you feel is appropriate:

Thanks!

D. Harrison

horizontal rule

HERE ARE THE AVAILABLE FIXES FOR THE RADIO SHOWN ABOVE IN FIGURE 2:

Click one of the above Icons to Purchase the Radio Repair Access
(for Blank Display or Volume Control Repair Instructions)
$19.99

horizontal rule

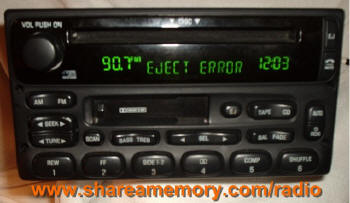

CD EJECT ERROR ACCESS (Ford/Nissan)
